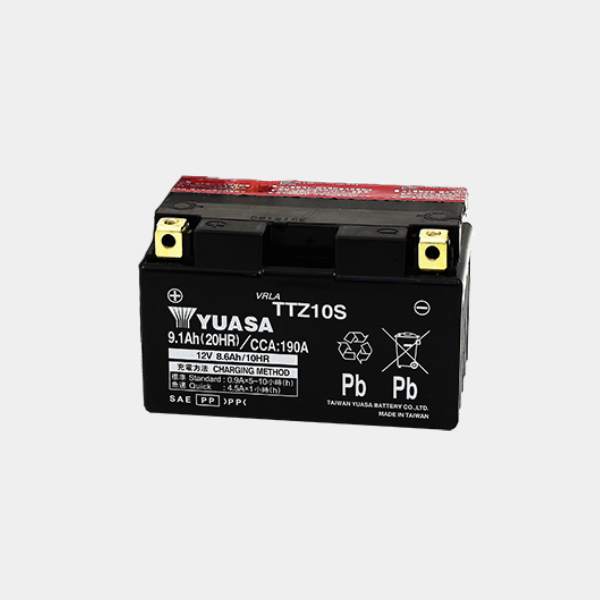

Yuasa TTZ

TTZ type battery

Hi-tech Maintenance free battery

※AGM(Absorbent Glass Mat) battery
※Long lifespan: Electrolyte is completely absorbed by glass mat, which prevent
※active material lead drop and expand battery life.
※Ultra stable re/discharge: Higher output.
※Better cold start: Higher plates, stronger CCA.
※Anti-spill: Electrolyte can be absorbed in battery avoid from spilling.
※Maintenance free: Ultra low water loss during negative plates redox, maintenance free.

Voltage : 12V
Capacity : 6AH ~ 12AH
Application: Motorcycle
  • Yuasa TTZ
  • Yuasa Sport

Features of YUASA TTZ Battery

Maintenance free
TTZ type has air-absorb structure, which can absorb hydrogen by negative plates when charging, then reverse to electrolyte.

You don't need to check the liquid level and refill water.

By the way, in order to avoid damage from internal air-pressure, which is produced by charging, we have setted safety valves.

Safety valves can release gas when air-pressure being high.

electrolyte is conserved in glass mat, don't need to worry about spilling through when engaging

strenuous sports.

Glass mat was made of glass fiber web stacks, then sticked into piece shape by adhesive.

Glass mat has acid-resist, drug-resist, electric-resist, electrolyte dredge, and low electric

conductivity features,  which can prevent short of positive/negative plates touch, drop

of active material from plates, and keep the distance between each plate.


High start performance
High-performed specific alloy plates and low-resistance glass mat can keep engine start performance well in cold climates.

Fast electrolyte filling design
The filling design can easily puncture the seal of electrolyte canister well in cold climates.

And there has two vent holes surrounded for air release when filling electrolyte.

Make it simple for electrolyte filling.


※Please read the filling guide on electrolyte canister.


Low self-discharge
TTZ type has high performance lead-calcium alloy plates, which has much lower self-discharge than Standard type.

※Recharge battery regularly when not use for a long time recommanded.

Explosion proof
There have explosion proof stones on both sides of vent holes, which can restrict the path of flame or spark inside the battery that cause probable explosion.


Motorcycle Battery Model Description

Standard Type

Example of battery number:

 01  Code name
 02  10HR capacity
 03  Size of battery
 04  Chemical polarity
 05  Postion of vents

 06  Volts
 07  Maintenance(Standard) battery
 08  Postion of terminals

Example of battery number:

 01  VRLA battery("Y" means Yuasa)
 02  Performance type in the same size of battery(e.g. None, X, R,and Z)
 03  Size of battery
 04  Dry-charged

【 Download battery data sheet 】
